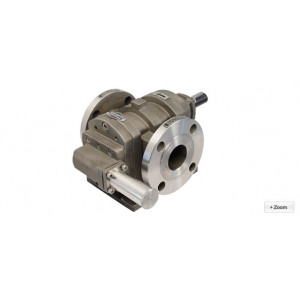

Foam Pressurizing Pump

Call Now
+91- 987XXXX303
WhatsApp
+91- 987XXXX303
AvailabilityIn Stock
Serial NumberFTMS/FTM
CategoryPressure Pumps
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Foam Pressurizing Pump Details

Fluid Tech Systems offers “ROTOFLUID” brand gear pump Model “FTMS” which is heavy duty foot mounting type positive displacement rotary twin gear pump. Model “FTMS” having all stainless steel (SS-316) in four piece construction with investment cast.  Due to four piece construction it can be easily cleanable and maintainable. These pumps having a double helical refined SS-316 gear shaft that are nitrated to give longer life. Due to Double halical gear it prevent axial and side thrust which help to increase life & performance of pump. The teflon coated dry running DU bush  bearing, supported on bronze wearing plate, placed inside the pump casing, alternatively bronze wearing plate cum bushes  can also be provided for thicker viscous liquid application.  The stuffing box is fitted with “GFO” pack sealant with provision to fit mechanical  shaft seal.  These pumps  provide with add-on type pressure relief valve.  The jacketing construction should be selected to facilitate the heating of the pump by steam or thermic fluid etc.

These pumps having flange at the end of suction and delivery which are available in 1/2"  to 6" size.  These pumps can be operated up to pressure of 10 kg/cm²  with 13 LPM to 1335 LPM flow capacity. These pumps are suitable for maximum temperature up to 200ºc and maximum viscosity  up to 1,00,000 SSU.
Model – FTMAll feature are same as FTMS but there are the following changes :

Casing   : available in  C.I.  and  WCB casting.

Shaft     : available in  SS 316, EN-9, EN-36 and SAE 8620.

Gear      : available in SS 316 and  EN-24  H. nitride.

Technical Specification

Model FTMS/FTMSuction & Delivery SizeCapacity at 1440 RPM
LPMUS GPMM³/hr
050-S1/2" x 1/2"13.003.300.75
050-M1/2" x 1/2"16.604.401.00
100-S1" x 1"30.007.921.80
100-M1" x 1"37.509.902.25
150-S1½" x 1½"60.0015.803.60
150-M1½" x 1½"75.0019.804.50
200-S2" x 2"100.0026.406.00
200-M2" x 2"125.0033.007.50
250-S2 ½" x 2 ½"150.0040.009.00
250-M2 ½" x 2 ½"200.0052.9012.00
300-S3" x 3"250.0066.0015.00
300-M3" x 3"333.0088.0020.00
400-S4" x 4"415.00111.0025.00
400-M4" x 4"500.00132.9030.00
500-S  5" x 5"600.00158.0036.00
500-M5" X 5" 750.00 197.5045.00
600-S6" X 6"1000.00263.0060.00
600-M6" X 6"1335.00351.0080.00

Features

  • Herringbone rotor design eliminate side thrust.
  • Modified tooth profile enhance tooth life.
  • Optional steam jacket pump available.
  • In-built relief valve construction
  • Gear is double helical design which prevent axial load.
  • Corrosion prevent pump

Application

  • Foam pressurizing application for fire fighting.
  • High pressure coolant transfer application for machine tools.
  • Handling thinner liquid at moderate measuring.
  • Light fuel pressurizing application for loader and burners.
  • Heavy viscous liquid transfer application like Molasses, Magma, Tar, Bitumen, Soap stock,
  • Paints, Varnish, Suspired, Sugar juice, Vegetable oil, Printing ink, Paper pulp, Spent wash.
